CPU

– INTEL® Bay Trail J1900 (2.0GHz) Quad Core processor
– 2 Phase CPU Power Support

Chipset

– Fintek® F71869A

Memory

– 1*SO-DIMM slot
– Support DDR3L 1333
– Max. capacity of system memory up to 8GB

Expansion Slots

– 1 * MiniPCI-E connector
– 1* PCIex1 slot

Storage

– 1* Serial ATA2 3Gb/s connector
– 1 * M-SATA Connector

Audio

– ALC888S-VD2 Audio CODEC
– HD Audio CODEC

Ethernet LAN

– 2*Realtek® RTL8111H Chip
– PCI Express Gigabit LAN

LVDS

– Onboard 24-bit Dual channel

USB

– 5* USB 2.0/1.1(3 distribute in back panel, 2 distribute in mid-board)
– 1* USB3.0

Special Features

– Support CPU Smart Fan
– Support Watch dog Technology
– Support GPIO Technology
– Support VGA header
– Support HDIM header
– Support Power On board
– Support Amplifier function(3W)
– Support Slim Fan design
– Support Slim hard drive design
– Support 1*RS422/RS485/RS232 COM port
– Thunder Protection Function
– All Solid Capacitor design
– All Power Pack MOSFET design

Back Panel I / O

– 3* USB 2.0/1.1 ports
– 1* USB3.0 port
– 2* RJ-45 port
– 1* Line-out port
– 1* VGA port (Max. Resolution: 1920*1080@60Hz)
– 1* COM port
– 1* LPT port
– 1* 12V DC Jack

Internal I / O

– 1* USB 2.0/1.1 headers for 2 USB 2.0/1.1 ports
– 2* CPU / Chassis Fan connectors
– 5* COM headers(1*RS422/RS485)
– 1* PS2/KB header
– 1* 4-pin ATX 12V Power connector
– 1* 4-pin SATA Power connector
– 1* 12-pin VGA header (Max. Resolution: 1920*1080@60Hz, selectable with Rear VGA port)
– 1* 20-pin HDMI header (Max. Resolution: 1920*1200@60Hz)
– 1* 24-bit Dual Channel LVDS header (Max. Resolution: 1920*1200@60Hz)
– 1* GPIO header
– 1* Mini PCI-e connector
– 1* M-SATA Connector
– 1* SATA Connector
– 1* SATA +Power Connector(7+15Pin)(Option)
– 1* Audio header
– 1* Front panel header
– 1* HDMI _SPDIF header

BIOS

– AMI 64MB DIP Flash ROM

Temperature

– Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C

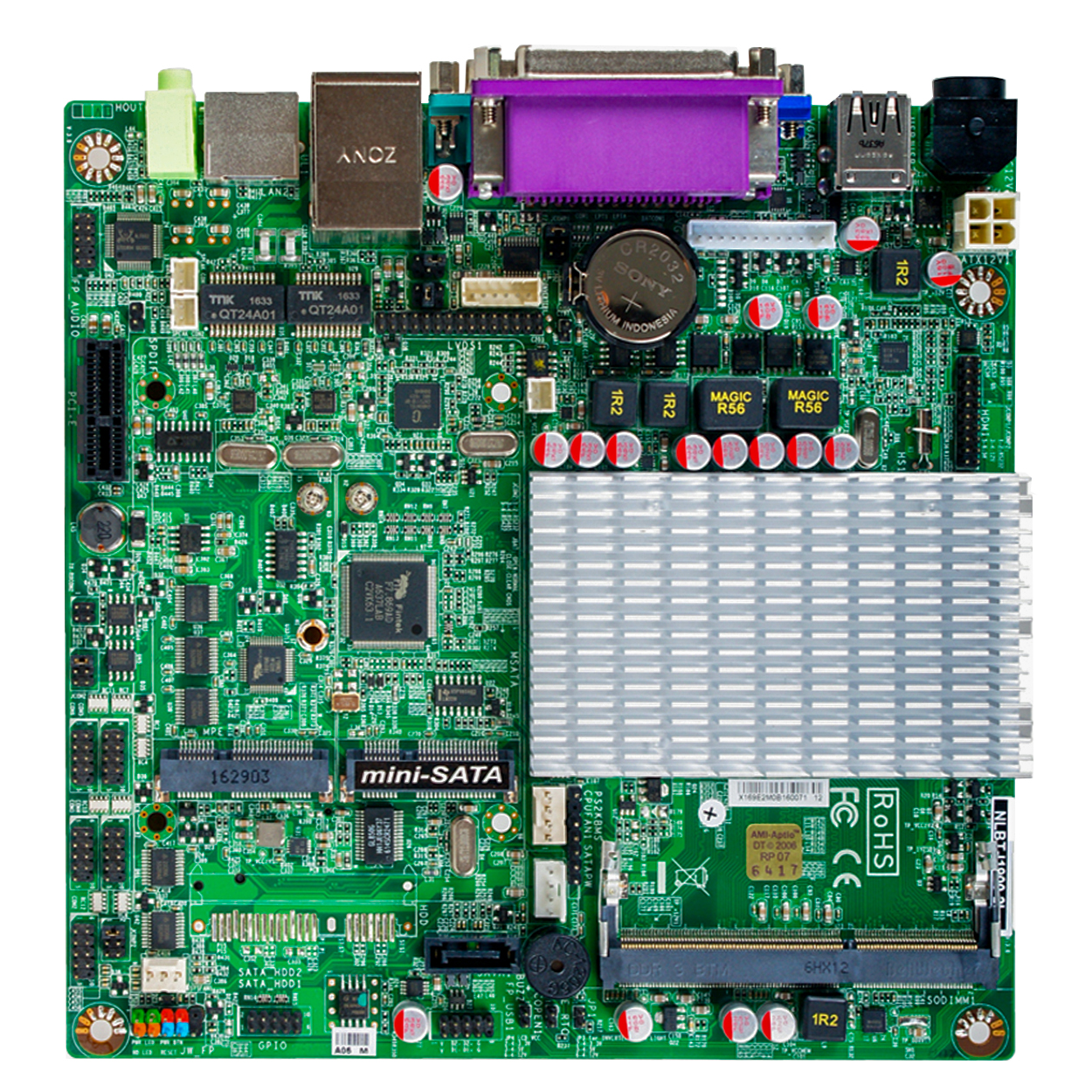

Form Factor

-Thin mini ITX Form Factor (170mm X 170mm)
